G4SM-23RGS-HC~TSL01

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design

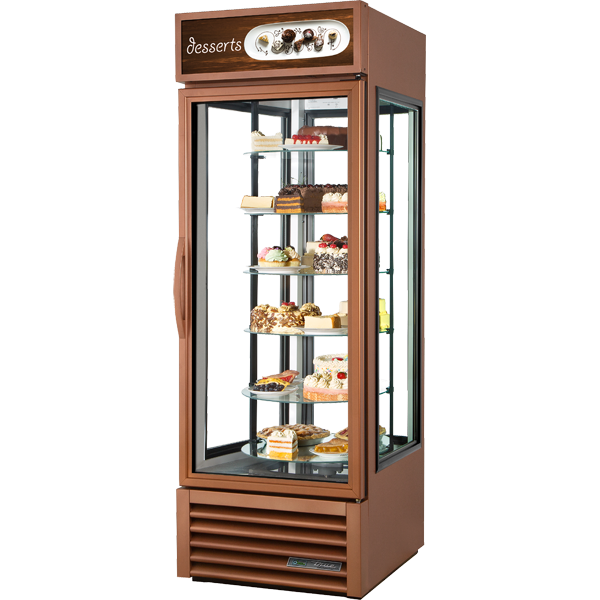

  • True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in a stylish merchandiser that creates a dynamic 360° product display.
  • Attention commanding-revolving glass shelves provide high visibility difference for high profit dessert items.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).
  • Sealed, self-lubricating evaporator fan motors and larger fan blades give True merchandisers a more efficient low velocity, high volume airflow design. This unique design ensures more consistent, colder holding temperatures and faster recovery in high use situations.
  • Bottom mounted condensing unit positioned for easy maintenance; “no stoop” lower shelf maximizes visibility by raising merchandised product to higher level.
• Cabinet Construction
  • Exterior - attractive, non-peel or chip copper powder coated cold rolled steel ends with matching cabinet top and back; durable and permanent.Low-E, double pane thermal insulated glass sides and door assembly. The latest in energy efficient technology.
  • Interior - attractive, white aluminum interior liner with stainless steel floor.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • Illuminated exterior front sign panel. Variety of sign options available.
• Door
  • “Low-E”, double pane thermal insulated glass door assembly with extruded aluminum frame. The latest in energy efficient technology.
  • Door fitted with 12” (305 mm) long extruded handle.
  • Self closing door. Positive seal, torsion type closure system.
  • Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
• Shelving
  • 360°revolving shelf system with 6 non-adjustable 21–5/8” (220 mm) diameter round shelves; 5 tempered glass and 1 templered mirrored glass. Mirrored shelf designed to be used on bottom level.
• Lighting
  • LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
• Model Features
  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • See our website truemfgstore.com for latest color and sign offerings.
  • NSF/ANSI Standard 7 compliant for open food product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • 115/60/1 NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • Black exterior.
  • White exterior.
  • Black aluminum interior liner.
  • 6" (153 mm) standard legs.
  • 6" (153 mm) seismic/flanged legs.
  • 2–1/2" (64 mm) diameter castors.
  • 4" (102 mm) diameter castors.
  • Red wine thermostat.
  • Chocolate thermostat.
  • White wine thermostat.
  • Barrel Locks – located in grill assembly (requires one per door)
