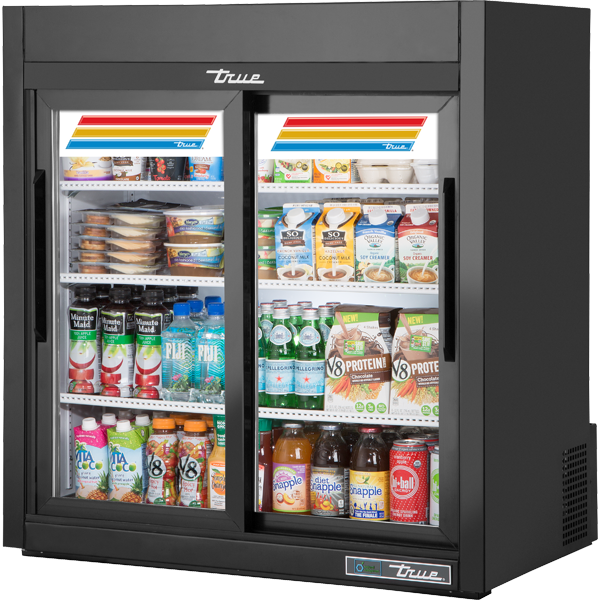

GDM-09-SQ-HC-LD

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design
  • True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays packaged food and beverages.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Cabinet Construction
  • Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
  • Interior - attractive, white aluminum liner with stainless steel floor.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Illuminated exterior sign panel. Variety of sign options available.
• Doors
  • “Low-E”, double pane thermal insulated glass door assemblies with mitered plastic channel frame. The latest in energy efficient technology.
  • Each door fitted with 12” (305 mm) long handles.
  • Self closing doors. Counter-balanced weight system for smooth, even, positve closing.
• Shelving
  • Three (3) adjustable, heavy duty PVC coated wire shelves: two (2) 31–3/4” x 15” (807 mm x 381 mm) and one (1) 31–3/4” x 8–7/16” (807 mm x 215 mm). Four (4) chrome plated shelf clips included per shelf.
  • Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2” (13 mm) increments.
• Lighting
  • LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
• Model Features
  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • See our website truemfgstore.com for latest color and sign offerings.
  • NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • 115/60/1 NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • White exterior
  • Stainless steel exterior model available
  • Ratchet locks
  • Barrel Locks
  • Additional shelving
  • Gravity feed 20oz. Bottle display system
