GDM-10F-HC~TSL01

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design

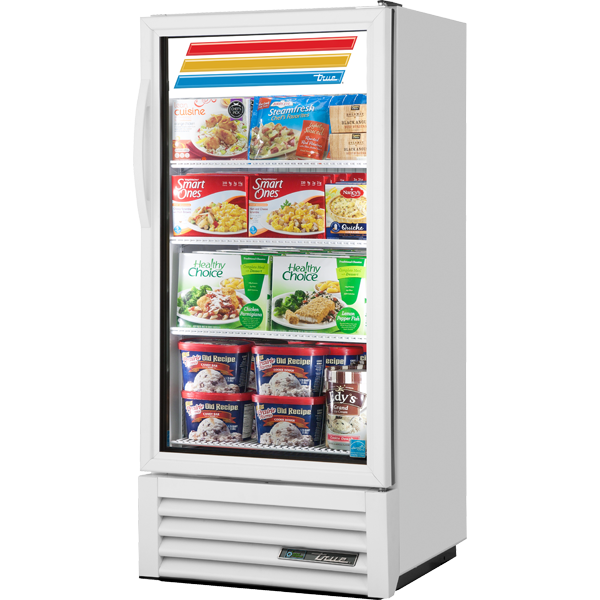

  • True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays frozen food and ice cream.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Bottom mounted condensing unit positioned for easy maintenance. “No stoop” lower shelf maximizes visibility by raising merchandised product to higher level.
  • Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.
• Cabinet Construction
  • Exterior - non-peel or chip white powder coated cold rolled steel; durable and permanent.
  • Interior - attractive, white aluminum liner with stainless steel floor.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • Door sign decal. Variety of decal options available.
• Door
  • Triple pane thermal insulated glass door assembly with mitered plastic channel frame.
  • Door fitted with 12" (305 mm) long integrated handle.
  • Self closing door. Positive seal, torsion type closure system.
  • Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
• Shelving
  • Three (3) adjustable, heavy duty PVC coated wire shelves 20–13/16”L x 16–3/4”D (529 mm x 426 mm). Four (4) chrome plated shelf clips included per shelf. One (1) PVC coated wire floor rack 22–3/8”L x 17–1/2”D (568 mm x 445 mm).
  • Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2” (13 mm) increments.
• Lighting
  • LED interior lighting, safety shielded.
• Model Features
  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • See our website truemfgstore.com for latest color and sign offerings.
  • Backguard and floor rack ensure optimum airflow.
  • Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • 115/60/1 NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • Left hinge model available.
  • Black exterior.
  • Stainless steel exterior.
  • Black aluminum interior liner with black shelving.
  • Stainless steel interior liner.
  • 2–1/2" (64 mm) diameter castors.
  • Novelty baskets.
  • Additional shelves.
  • Pricing strips.
  • Barrel Locks – located in grill assembly (requires one per door)
