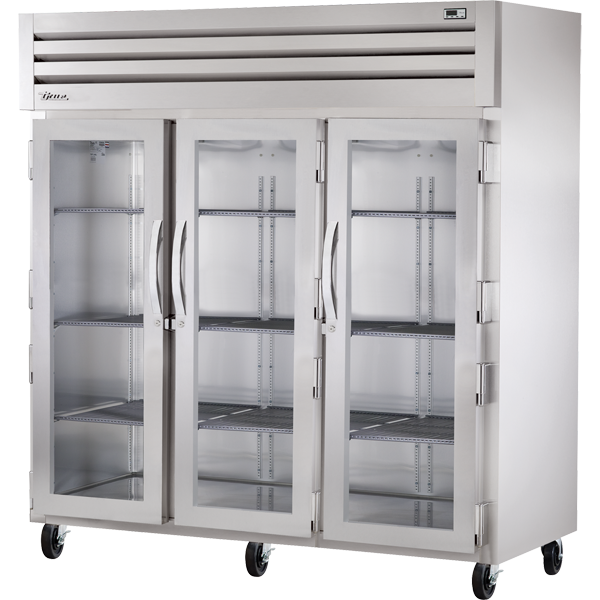

STA3RVLD-3G-HC

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design
  • True’s glass door reach-in’s are designed with enduring quality that protects your long term investment.
  • Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Top mounted refrigeration system with evaporator positioned out of food zone.
• Cabinet Construction
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Doors
  • “Low-E”, double pane thermal insulated glass.
  • Lifetime guaranteed bolt style door locks.
  • Lifetime guaranteed heavy duty all metal working door handles.
  • Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
  • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
• Standard Shelving
  • STR Series Shelving - (3) heavy-duty, chrome-plated wire shelves per section. Left & right section shelves are 23–13/16”L x 25–5/16”D (605 mm x 643 mm). Center section shelves are 24–13/16”L x 25–5/16”D (631 mm x 643 mm). Four (4) chrome plated shelf clips included per shelf.
  • STA Series Shelving - (3) heavy-duty, chrome-plated wire shelves per section. Left & right section shelves are 23–13/16”L x 25–5/16”D (605 mm x 643 mm). Center section shelves are 24–13/16”L x 25–5/16”D (631 mm x 643 mm). Four (4) chrome plated shelf clips included per shelf.
  • STG Series Shelving - (3) heavy-duty, PVC-coated, wire shelves per section. Left & right section shelves are 23–13/16”L x 25–5/16”D (605 mm x 643 mm). Center section shelves are 24–13/16”L x 25–5/16”D (631 mm x 643 mm). Four (4) chrome plated shelf clips included per shelf.
• Lighting
  • Vertical LED interior lighting mounted on interior of cabinet. Lighting runs entire length of door opening. Safety shielded.
• Model Features
  • Exterior digital temperature display, available with either °F or °C .
  • Evaporator epoxy coated to eliminate the potential of corrosion.
  • Curb mounting ready.
  • NSF/ANSI Standard 7 compliant for open food product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • 115/60/1 NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • 6" (153 mm) standard legs.
  • 6" (153 mm) seismic/flanged legs.
  • 6" (153 mm) stainless steel legs.
  • Hasp lock.
  • Grey wine shelves. (STR, STA, STG)
  • Additional shelves.
  • Stainless back. (STR, STA, STG)
  • Security package.
