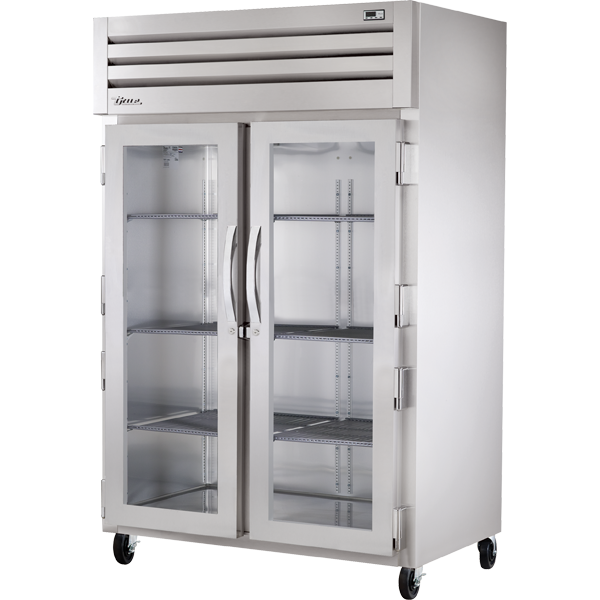

STG2H-2G

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design
  • True’s glass door reach-in heated cabinets are designed with enduring quality that protects your long term investment.
• Heater System
  • Cabinet designed to provide holding temperatures of 140°F to 180°F (60°C to 82.2°C). Heating system controlled by exterior on/off switch and electronic temperature control.
  • One (1) stainless steel (for corrosion resistance),heating element for uniform generation of electric heat. Cabinet comes with a total of 3000 watts.Equipped with low-velocity fans to assure even temperature distribution throughout the cabinet.
  • Manually controlled vent located on top of the cabinet for positive humidity control.
• Cabinet Construction
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Doors
  • “Low-E”, double pane thermal insulated glass.
  • Lifetime guaranteed bolt style door locks standard.
  • Lifetime guaranteed heavy duty all metal working door handles.
  • Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
  • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
• Shelving
  • Three (3) Heavy duty, chrome plated, wire shelves per section.
• Model Features
  • Exterior digital temperature display, available with either °F or °C .
  • Designed to hold warm baked or cooked food. Cabinet is not designed to heat ambient or cold product.
  • NSF/ANSI Standard 4 compliant for open food product.
• Electrical
  • Unit comes with 3 feed wires (including ground) to be hardwired at installation site to a 208-240/60 Hz. single phase, 20 amp dedicated circuit.
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • 6" (153 mm) standard legs.
  • 6" (153 mm) seismic/flanged legs.
  • Hasp lock.
  • Field reversible hinge.
  • Additional shelves.
  • Stainless back. (STR, STA, STG)
  • Security package.

  SHELVING KIT OPTIONS
