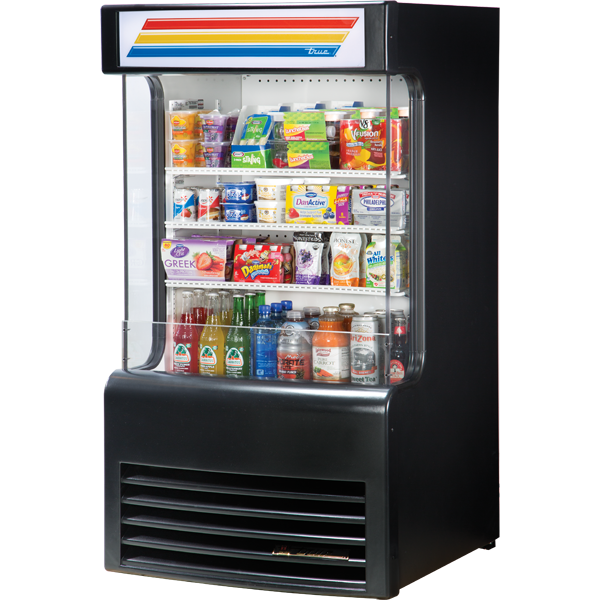

TAC-14GS-LD

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design
  • Designed using the highest quality materials and components to provide the user with colder product temperatures and lower utility costs in an attractive merchandiser that brilliantly displays packaged food and beverages.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) R153A refrigerant.
  • Time-initiated, time-terminated off cycle defrost system.
  • Extra large evaporator coil and condenser balanced with higher horsepower compressor; maintains cabinet temperatures of 35°F to 40°F (1.6°C to 4.4°C) for the best in food preservation.
  • Sealed, cast iron, self-lubricating evaporator fan motors.
  • Bottom mounted condensing unit positioned for easy maintenance.
  • Patented reversing condenser fan motor. Fan motor reverses during defrost off cycles to help keep condenser coil free from dirt, dust and debris. Keeping coils clean optimizes the unit’s performance providing colder holding temperatures and increased energy efficiency. Regularly scheduled thorough cleaning of coils still recommended.
• Cabinet Construction
  • Exterior - durable and permanent non-peel or chip black vinyl front and sides with matching black aluminum back.Plexiglass lower front and side panels. Durable and break resistant maximizes product visibility.
  • Interior - attractive, white aluminum liner. Stainless steel interior floor and deck pans.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • Illuminated exterior sign panel. Variety of sign options available.
• Shelving
  • Three (3) adjustable, heavy duty PVC coated wire shelves 25–11/16"L x 17–1/2"D (653 mm x 445 mm). Four (4) chrome plated shelf clips included per shelf.
  • Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.
• Lighting
  • LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
• Model Features
  • Perforated interior back wall for more efficient airflow.
  • Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115V / 60 Hz single phase, 15 amp dedicated outlet. Cord and plug set included.
  • NEMA 5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • 4" (102 mm) diameter castors (set of 4).
  • Variety of sign panels - see our website for the latest color and sign offerings.
  • White exterior.
  • Stainless steel exterior.
  • Black interior liner with black shelves.
  • Additional shelves.
  • TrueFlex gravity feed organizers.
  • TrueTrac 20 oz. (592 ml) organizers.
  • TrueTrac 8 oz/10 oz. (237 ml / 296 ml) milk organizers.
  • Pricing strips.
