TBB24-72-3S-Z1-BST-B-1

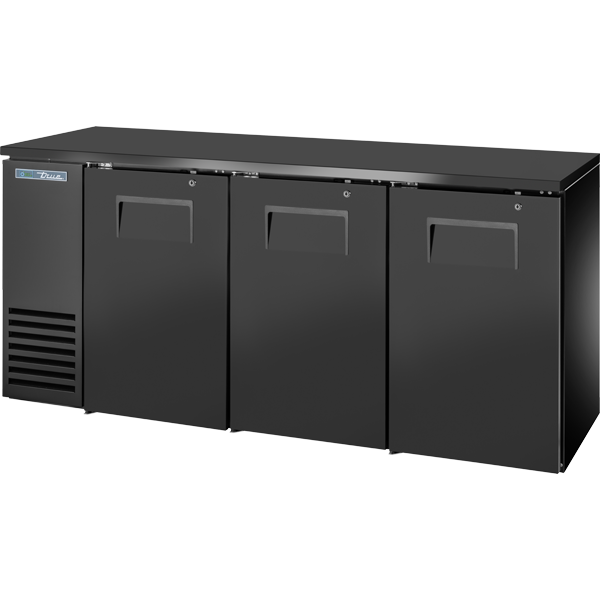

Solid Swing Door Back Bar 24″ Depth Single Zone Cooler with Black Sub Top and Black Exterior

Spec Sheet

CAD File

Revit File

Request a Quote Contact Us

Product Specifications
Highlighted Features

Specifications
Model	TBB24-72-3S-Z1-BST-B-1
Door Count	3
Shelf Count	6
Weight (lbs)	415
Weight (KG)	188

Capacity
1/2 Barrels	3
12 oz Cans	125 6-pks

Dimensions	Imperial	Metric
Width	72–1/8	1829
Depth	24–7/8	632
Height	34–1/4	868
Height	10	3.05

Electrical
Amps	3.2
Voltage	115/60/1
NEMA Configuration	5-15P

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

Refrigeration System
- Factory engineered, self-contained, capillary tube system.
- Environmentally friendly R290 hydrocarbon refrigerant.
- Forced air refrigeration system which maintains 35°F (1.7°C) product temperature.
- True’s self-cleaning RCU technology eliminates the need to clean the condenser coil, reduces energy consumption and helps maintain the coldest temperatures and freshest product.
Cabinet Construction
- Exterior: Black, powder coated cold-rolled steel with black sub top.
- Interior: Stainless steel floor with heavy gauge galvanized steel walls.
- Insulation: Entire cabinet is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion and zero global warming potential.
- Base fitted with leg levelers.
Doors
- Galvanized steel door liner.
- Each Door fitted with 12" (305mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
- Positive seal doors.
- Glavanized steel door liner.
- Door locks standard.
Shelving
- Six (6) adjustable, gray PVC coated wire shelves. Left/Right doors 17–11/16" W x 18" D (449 mm x 458 mm). Center door 20" W x 18" D (508 mm x 458 mm). Four (4) chrome plated shelf clips included per shelf.
- Aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.
Lighting
- LED interior lighting.
Model Features
- Electronic control.
- UL approved for outdoor use.
- NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product.
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-15R
Optional Features/accessories Upcharge And Lead Times May Apply.
- Castors 7/8" (23mm), 2"D (51mm), 3"D (77mm), 4"D (102mm), 5"D (127mm) castors
- 6"H (153mm) legs
- 6"H (153mm) seismic legs
- Additional shelves
- One liter or wine bottle organizers
- Bottle Organizers (available in black or gray)

R290 Hydrocarbon refrigerant. Exterior: Black, powder coated cold-rolled steel with black sub top. Interior: Stainless steel floor with heavy gauge galvanized steel walls. Each Door fitted with 12″ (305mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment. True’s self-cleaning RCU technology eliminates the need to clean the condenser coil, reduces energy consumption and helps maintain the coldest temperatures and freshest product. LED interior lighting. NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product. Recommended 1″ clearance side and back
