Commercial Ice Machines

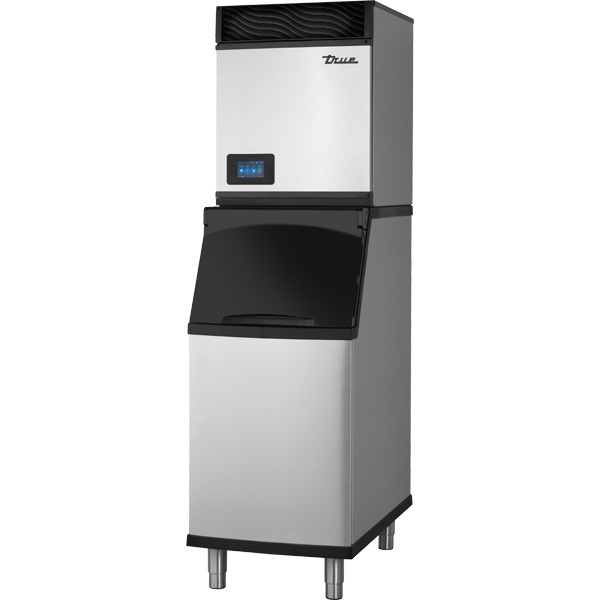

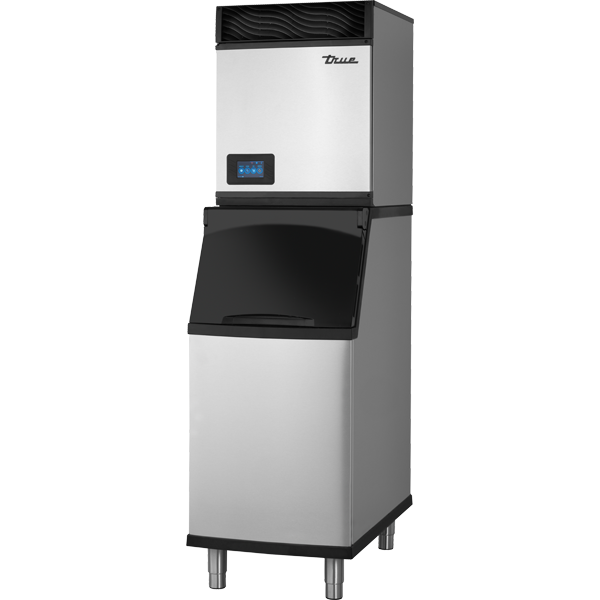

TCIM-622
Commercial Ice Machines
TCIM-622
| Specifications | |
|---|---|
| Model | TCIM-622 |
| Weight (lbs) | 200 |
| Weight (KG) | 91 |
| Production @ 70/50 | 640 lbs (290 kg) |
| Production @ 90/70 | 580 lbs (263 kg) |
| Dimensions | Imperial | Metric |
|---|---|---|
| Width | 22 | 559 |
| Depth | 24 | 610 |
| Height | 27 | 686 |
| Electrical | |
|---|---|
| Min. Circuit Ampacity | 15 |
| Voltage | 115/60/1 |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
-
Evaporator Plate
- High performance copper
- No harvest assist necessary
-
Refrigeration System
- Environmentally friendly R290 Refrigerant
- High & low pressure transducers for gauge-free servicing
- Micro channel condenser for superior efficiency
- Wide operating range: 35°F to 110°F ambient
- Ultra quiet fan operation
-
Construction
- TrueTech aluminum front and sides, all plastic interior and single piece case for both 22" & 30" units
Environmentally friendly R290 refrigeration system for optimum ice production and energy efficiency 30% below DOE 2018 20% below Energy Star TrueZone protection to purify surrounding air in bin and food zone TrueGuard Antimicrobial embedded in every plastic piece including bin liners Food zone pieces easily removed without tools Simple 1-touch cleaning Easily removable air filter with RCU technology 4.3″ front display – largest in the industry Simple touch operation
Remote Monitoring Capabilities
