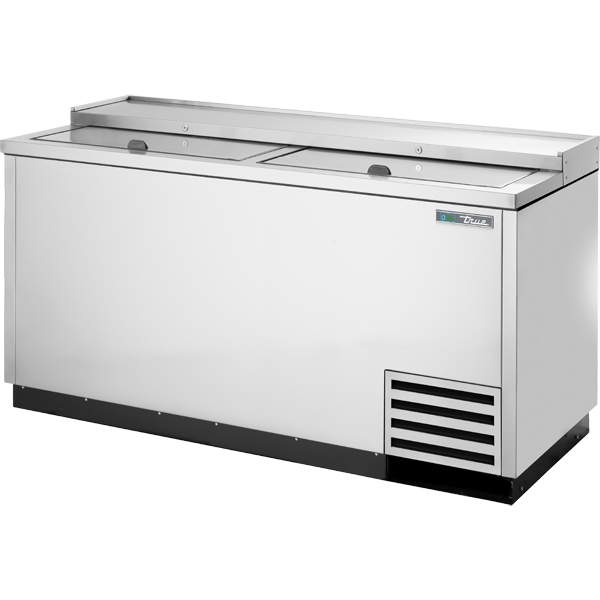

TD-65-24-S-HC

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design
  • True’s refrigerated horizontal bottle coolers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Condensing unit accessed from behind front grill, slides out for easy maintenance.
  • Forced-air cooling. Positively guided air flow cools bottles on top first. Evaporator coil virtually runs length of cooler for balanced temperatures throughout the cabinet.
• Cabinet Construction
  • Exterior - Stainless steel countertop, lids, cabinet front and sides, and back.
  • Interior - long lasting, heavy duty galvanized steel.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • Bottle cap opener and cap catcher included. Field installed.

  BIN DIVIDERS
• Lighting
  • LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
• Model Features
  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • Barrel locks standard.
  • Complies with NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • 115/60/1 NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • 6" (153 mm) standard legs.
  • 6" (153 mm) seismic/flanged legs.
  • 2–1/2" (64 mm) diameter rail castors.
  • 3" (77 mm) diameter rail castors.
