TDM-DC-48-GE/GE-S-S

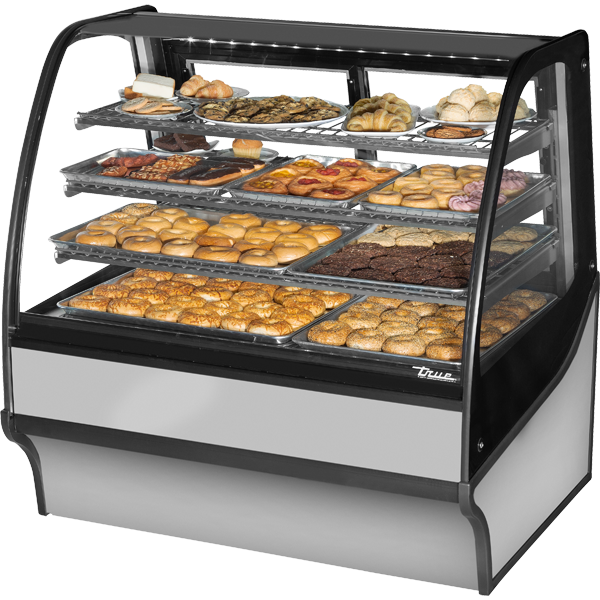

Curved Glass, Glass End Dry Case with Stainless Exterior and Stainless Interior

Spec Sheet

CAD File

Watch Video

Request a Quote Contact Us

Product Specifications
Highlighted Features

Specifications
Model	TDM-DC-48-GE/GE-S-S
Door Count	2
Shelf Count	3
Weight (lbs)	580
Weight (KG)	264

Dimensions	Imperial	Metric
Width	48–1/4	1226
Depth	39	991
Height	49–1/8	1248
Height	8	2.44

Electrical
Amps	7.0
Voltage	115/60/1
NEMA Configuration	5-15P

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

Design
- True’s "dry" display case combines efficient, high volume merchandising with an elegant curved glass front for sophisticated presentation of high end desserts and pastries.
- Designed to provide an attractive companion to our TDM-R "refrigerated" display merchandiser. Please note: If units are banked together, because of side panel, a 1/2" gap will remain between units.
Cabinet Construction
- Exterior - stainless steel rounded front and back, stainless steel side and front panels.
- Curved glass front and side glass panels.
- Stainless steel interior for those who appreciate the value of stainless.
- Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
- Curved glass front and side glass panels.
CURVED FRONT DISPLAY GLASS
Rear Doors
- Two (2) rear sliding glass doors for back access.
- Each door fitted with 12" (305 mm) long aluminum handle.
- Sliding doors ride on stainless steel V-channel with stainless steel bearings. Doors fit within plastic channel frame.
Shelving
- Three (3) adjustable heavy duty PVC coated wire shelves standard.
- Each shelf supports a maximum weight of 150 lbs. (69 kg).
PAN CAPACITY
Lighting
- LED interior lighting, two (2) clips underneath shelf to keep wires in place. Safety shielded.
Model Features
- Front glass swings Up for easy cleaning access.
- NSF/ANSI Standard 2 compliant for open food product.
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
- NEMA-5-15R
Optional Features/accessories Upcharge And Lead Times May Apply.
- 230 - 240V / 50 Hz.
- Mirrored interior ends
- Black wire shelves
- Stainless mezzanine shelves
- Banking kit

True’s "dry" display case combines efficient, high volume merchandising with an elegant curved glass front for sophisticated presentation of high end desserts and pastries. Cabinet is NSF/ANSI Standard 2 certified to hold open food product. Two (2) rear sliding glass doors for back access. Exterior – stainless steel rounded front and back, stainless steel side and front panels. Curved glass front and side glass panels. Stainless steel interior for those who appreciate the value of stainless. Three (3) tiered levels of adjustable wire cantilever shelves that match cabinet interior color. Chrome plated wire shelves standard on stainless units. Front glass swings Up for easy cleaning access.
