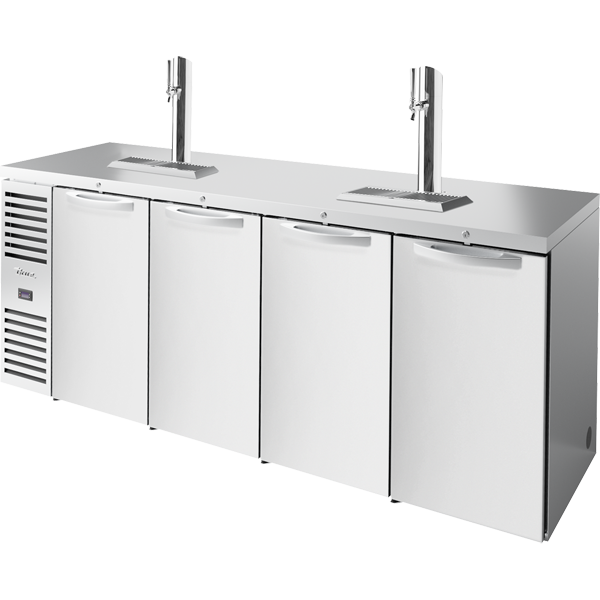

TDR92-RISZ1-L-S-SSSS-1

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Refrigeration System
  • Factory engineered, self-contained, capillary tube system
  • Environmentally friendly R290 hydrocarbon refrigerant
  • Forced air refrigeration system which maintains 33°F to 38°F (.5°C to 3.3°C) product temperatures
  • True’s self-cleaning RCU technology eliminates the need to clean the condenser coil, reduces energy consumption and helps maintain the coldest temperatures and freshest product.
• Cabinet Construction
  • Exterior: Black, powder coated cold-rolled steel with stainless steel countertop
  • Interior: Stainless steel floor and sides with ABS plastic ceiling
  • Insulation: Entire cabinet is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion and zero global warming potential
• Doors
  • Door locks standard
  • Field Reversible Doors standard (reverse hinge kit included)
  • Door threshold with reinforced lip
• Model Features
  • NSF/ANSI standard 7 compliant for the storage and/or display of packaged or bottled product
  • UL approved for outdoor use
  • Electronic temp control with exterior digital display
  • Three (3) access ports standard (see drawing for locations)
  • 3" (77mm) diameter insulated column with single faucet
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • 115/60/1 NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • TruLumina® 14-Color LED lighting
  • Castors: 7/8" (23 mm) rollers, 2" (51mm), 3" (77mm), 4" (102mm), 5" (127mm) castors
  • 6" (153mm) legs
  • 6" (153mm) seismic legs
  • Optional draft towers available (contact factory)
  • Alternative temperature zones available (contact factory)
