TGM-DC-59-SC/SC-S-W

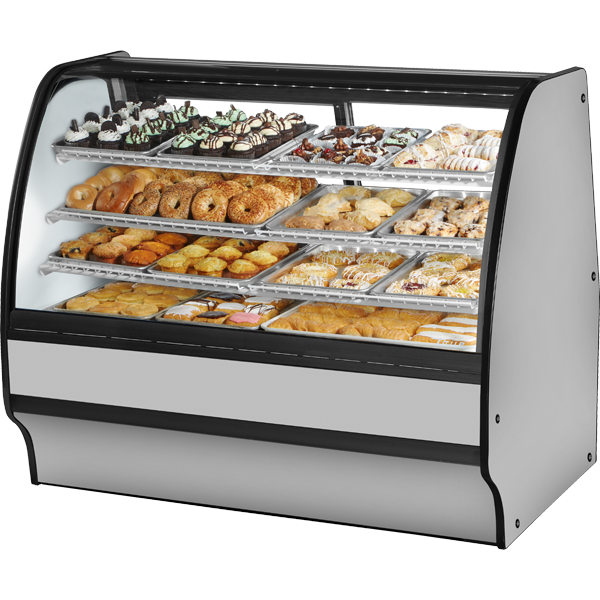

Fixed Front Curved Glass, Solid Colored End Dry Case with Stainless Exterior and White Interior

Spec Sheet

CAD File

Watch Video

Request a Quote Contact Us

Product Specifications
Highlighted Features

Specifications
Model	TGM-DC-59-SC/SC-S-W
Door Count	2
Shelf Count	6
Weight (lbs)	TBD
Weight (KG)	TBD

Dimensions	Imperial	Metric
Width	59–1/4	1505
Depth	39	990
Height	49–1/8	1247
Height	8	2.44

Electrical
Amps	7.0
Voltage	115/60/1
NEMA Configuration	5-15P

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

Design
- True’s dry display case glass merchandiser combines efficient, high volume merchandising and exceptional refrigeration with an elegant curved glass front for sophisticated presentation of high end deli, desserts and pastries.
- Designed to provide an attractive companion to our TGM-R "refrigerated" glass merchandiser. Please note: If units are banked together, because of side panel, a 1/2" (13mm) gap will remain between units.
Cabinet Construction
- Exterior - powder coated FDA black rounded front and back, solid wood sides with aluminum cover and front panels. Color options available (upcharge may apply) - white or stainless.
- Interior - powder coated FDA white over CRS material. Color options available (upcharge may apply) - black or stainless.
- Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
CURVED FRONT DISPLAY GLASS
Rear Doors
- Two (2) rear sliding glass doors for back access.
- Each door fitted with 12" (305 mm) long aluminum handle.
- Sliding doors ride on stainless steel V-channel with stainless steel bearings. Doors fit within plastic channel frame.
Shelving
- Six (6) adjustable heavy duty PVC coated wire shelves standard.
- Each shelf supports a maximum weight of 150 lbs. (69 kg).
PAN CAPACITY
Lighting
- LED interior lighting, two (2) clips underneath shelf to keep wires in place. Safety shielded.
Model Features
- NSF/ANSI Standard 2 compliant for open food product.
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
- NEMA-5-15R
Optional Features/accessories Upcharge And Lead Times May Apply.
- 220-240V/50-60Hz
- 220-240V/50-60Hz
- Custom exterior colors (contact factory for details)
- Glass shelves
- Frosted glass shelves
- Ratchet lock
- Electrical Receptacle
- Exterior top scale shelf
- Exterior small top service shelf
- Exterior medium top service shelf
- Exterior large top service shelf
- External front shelf kit (only available in black)
- External rear service shelf shelf kit (only available in black)
- 4" (102mm) Castors
- 2–1/2" (64mm) castors
- 6" (153mm) legs

True’s refrigerated glass merchandisers combine efficient, high volume merchandising and exceptional refrigeration with an elegant curved glass front for sophisticated presentation of high end desserts and pastries. Cabinet is NSF/ANSI Standard 2 compliant to hold open food product. Two (2) rear sliding glass doors for back access. Exterior – powder coated FDA black rounded front and back, solid wood sides with aluminum cover and front panels. Color options available (upcharge may apply) – white or stainless. Interior – powder coated FDA white over CRS material. Color options available (upcharge may apply) – black or stainless. Three (3) tiered levels of adjustable wire cantilever shelves that match cabinet interior color. Chrome plated wire shelves standard on stainless units. Curved glass front is single pane tempered glass with extra large viewing area to maximize product presentation.
